HDMI Video Outputs
1 x HDMI 2.1 (Type A)
Outputs resolution and frame rate set in Blackmagic Camera for iOS.
Blackmagic Camera ProDock
Tax included.
CINTDOCKPRO

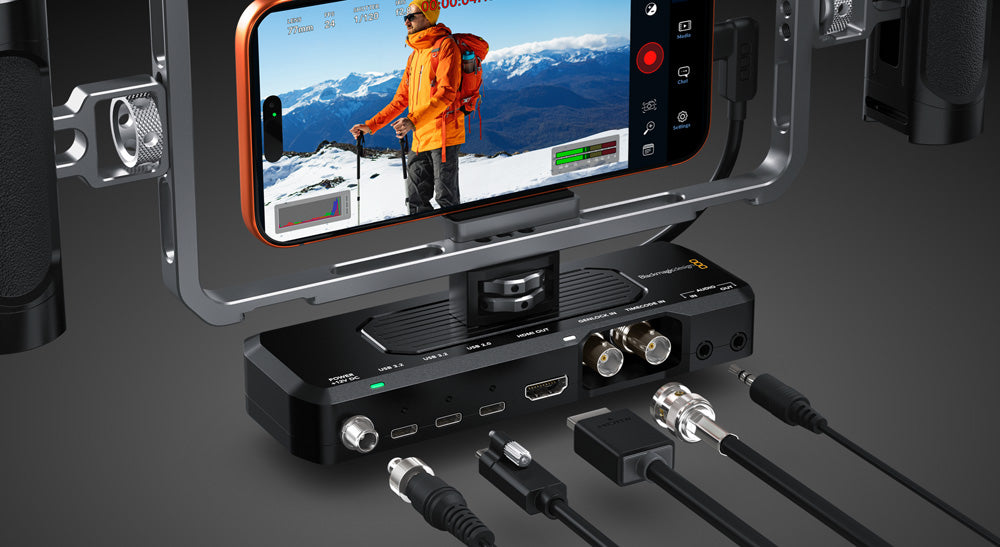

Blackmagic Camera ProDock transforms your iPhone into a professional production camera with all the connections you need to build a custom rig. It also supports the Blackmagic Camera app for iPhone! You get connections for HDMI monitoring, mic, headphones, genlock, USB for external disks and power! With professional BNC connections, Blackmagic Camera ProDock supports external genlock and timecode to keep all your cameras in perfect sync. You get 3 USB-C ports so you can connect control accessories and external SSDs for recording, plus the power management will ensure everything can run at the same time.

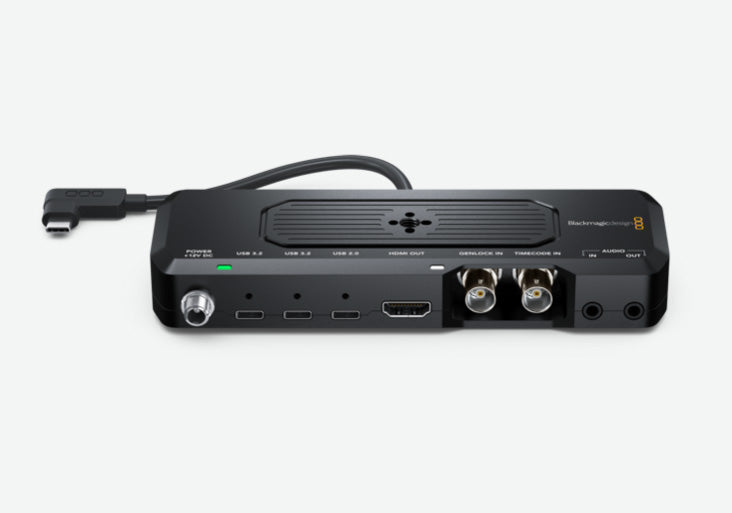

Connections
Audio Inputs
1 x 3.5mm stereo mini-jack.
Audio Outputs
1 x 3.5mm stereo mini-jack.
Timecode Input
1 x BNC,
1 x 3.5mm audio input supports timecode in.
Genlock Input
1 x BNC, Tri-Sync or Black Burst.
Genlock supported on iPhone 17 Pro and iPhone 17 Pro Max.
USB-C Ports
2 x USB 3.2 high speed ports for recording to external media
1 x USB 2.0 port for accessories
Power
+12V to +15V DC input with locking 5.5mm barrel connector.
iPhone Connection
1 x USB-C cable and plug.
